Medium Duty Hydraulic Cutters — Holmatro Mobile Cutters
Holmatro ICU 10 medium duty hydraulic cutters offer cable, standard and straight blade configurations for industrial cutting. Ask Justram about a suitable pump and hose package, rental availability or replacement parts for your existing cutter.

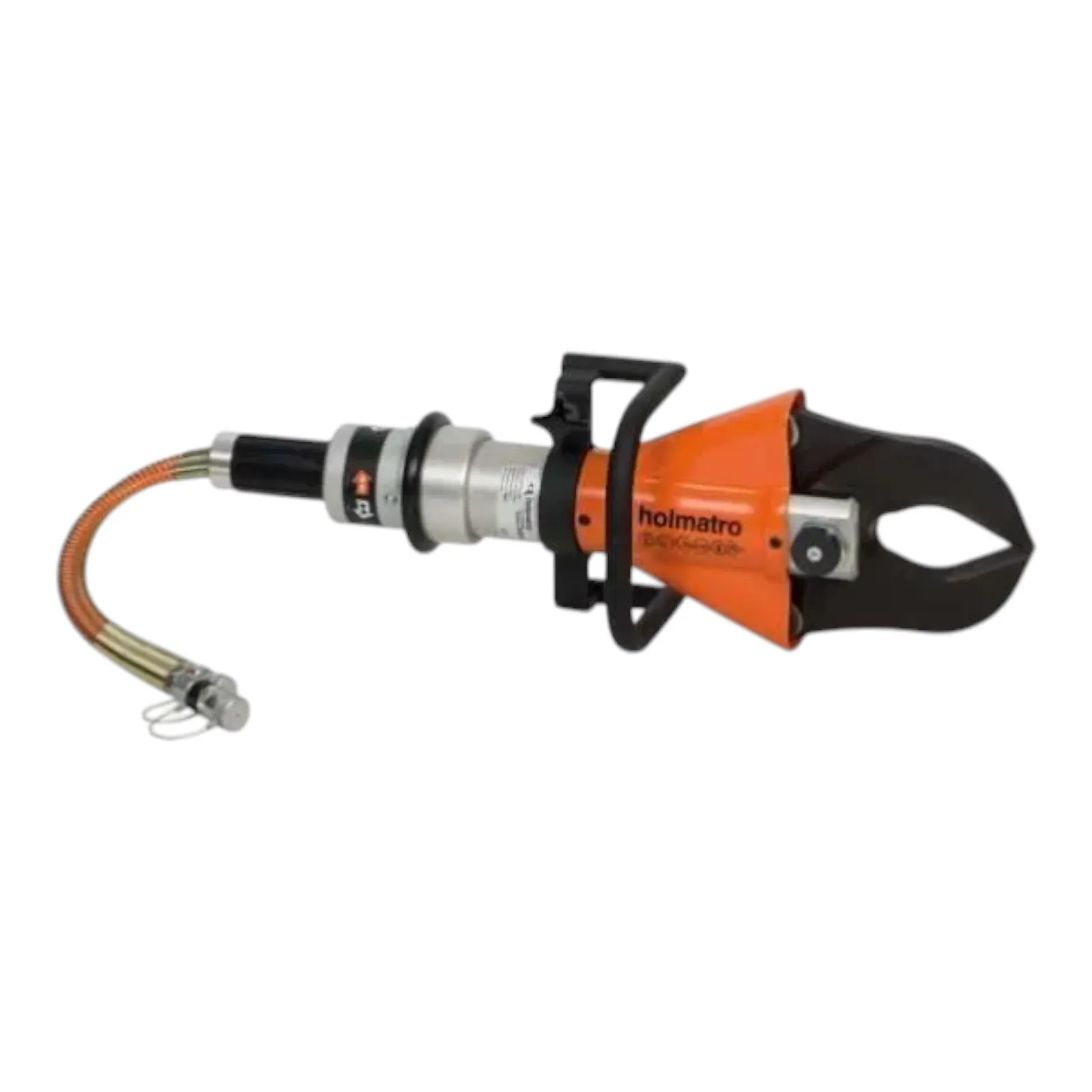

ICU 10 mobile hydraulic cutters
Holmatro medium duty hydraulic cutters provide three blade configurations for cable processing, recycling and dismantling applications. The ICU 10 A range sits between the compact ICU 5 cutters and larger ICU 40 shears. Match the blade design to the material and access at the cut.
Choose the blade configuration
- ICU 10 A 10: cable blades, with a 115 mm maximum cutting opening.
- ICU 10 A 30: standard curved blades, with a 158 mm maximum cutting opening.
- ICU 10 A 40: straight blades with cutting teeth and a spreading function, with a 296 mm maximum cutting opening.
The models have a maximum working pressure of 500 bar. Check the selected blade’s permitted material and section capacities; the blade opening alone does not define what can be cut.
ICU 10 specifications
| Specifications | ICU 10 A 10 | ICU 10 A 30 | ICU 10 A 40 |
|---|---|---|---|
 |  |  | |
| Applications | Cable Guide Blades, Cable recycling and cable production: Telephone cables, ground cables, electro cables and steel cables. | Curved blades.are very much suitable in applications like: Car recycling: Catalytic converters, exhaust pipes, doors, A- and B-posts, drive shafts (hollow), engine mountings, steering columns, bumpers, bull bars and pressed steel wishbones. Demolition: Rod material, tube profiles, frames, construction materials, wood, roots (trees), fuel pipes, heating pipes, small cables. Foundry: Removing risers and feeders from aluminium castings. | Blades with cutting teeth and spreading function. Therefore this cutter is very much suitable in applications like: Recycling of refrigerators and other household appliances: Removing of compressor, cables, profiles. Demolition: Steel plate, strip material, square profiles. |
| art no | 170.012.053 | 170.012.055 | 170.012.056 |
| blade type | 10 cable | 30 standard | 40 straight |
| cutter type | mobile | mobile | mobile |
| max. working pressure bar/Mpa | 500 / 50 | 500 / 50 | 500 / 50 |
| max. spreading opening mm | 0305 | 0305 | |
| max. cutting opening mm | 0115 | 0158 | 0296 |
| max. spreading force kN/t | 92 / 9.4 | ||
| max. cutting force kN/t | 242 / 24.7 | 246 / 25.1 | 264 / 26.9 |
| required oil content (effective) cc | 0084 | 0084 | 0084 |
| weight, ready for use kg | 0017.3 | 0015.3 | 0015.4 |
| Temperature range °C | -20 + 80 | -20 + 80 | -20 + 80 |
| Hose Lengths Options | 5Mtr, 10Mtr, 20 Mtr, 50 Mtr, 100 Mtr | 5Mtr, 10Mtr, 20 Mtr, 50 Mtr, 100 Mtr | 5Mtr, 10Mtr, 20 Mtr, 50 Mtr, 100 Mtr |
Hydraulic packages and accessories
A compatible hydraulic pump and hose assembly are required. Justram can discuss gas or electric pump packages; the existing standard hose option is 10 m, with other lengths subject to system selection. Confirm couplings, hose length, power source and operating frequency before ordering.
Available accessory enquiries include maintenance sets, pressure-gauge sets, lubricants, trolleys and tool balancers. If a battery-powered cutter is preferred, ask about a suitable alternative model and its duty cycle rather than assuming it uses the same configuration as the ICU 10 hydraulic system.
Rental, service and application support
Ask Justram about renting an ICU 10 cutter system. Provide the required dates, material, section size and job location so availability and the appropriate package can be checked. Rental and purchase configurations are confirmed by quotation.
Justram provides Holmatro equipment service and maintenance support. Include the tool model and serial number when requesting replacement blades, parts or repair. For a new application, also provide wall thickness, available clearance, cutting frequency and required hose length.
Compare compact ICU 5 hydraulic cutters or heavy duty ICU 40 hydraulic shears for different handling and cutting requirements.
